供应
玩具边缘测试 UL利边缘测试仪
价格
180元/台
品牌
华盛仪器公司
产地
广东 东莞市
店铺信息
东莞市黄江华盛仪器经营部
爱采购会员第1年
VIP企业会员等级3
地区 :
广东-东莞市
地址 :
东莞市黄江镇西进路三巷18号一楼
进入店铺
本店由东南商机网运营支持
产品参数 :
品牌 华盛仪器公司
起订 ≥1 台
供货总量 100 台
测试仪 SET-50
利边测试仪 UL-1439
锐边测试仪 1439
毛边测试仪 50
利边测试器 UL
产品详情 :
  2_1530629930_8154




2_1530629930_8154

2_1543231309_2063



2_1543231309_2063

2_1543231343_9336





利邊測試器

利邊測試器是產品設備測試的領導者,當前在全世界製造業中廣泛使用,包括玩具、企業設備、汽車製造商及家電等。因為越來越多人關注家居產品的使用,所以 Underwriter’s Laboratory (UL)製訂出標準的測試儀器,去測試各種不同消費產品。

1_1563176674_3059

美國TES华盛仪器公司是***利邊測試器SET-50的原生產商。

如您關注您的產品利邊,並使之符合(UL公司及消費品委員會製訂的)國際標準,您必需購買利邊測試器SET-50及膠帽TC-3。

利邊測試器是非常容易使用及耐用。貝殼形設計,特別適合放於手中,輕巧測試臂及完全密封式的軸承,可減少磨擦,加入新彈弓來符合*新的UL公司力度要求,所有可移動的部份均有保護來防止污垢及損壞。

利邊測試器需配合膠帽一起使用,而膠帽是模彷人類手指厚度而設計。



規格

專為UL標準而設計的測試器。

UL公司制定標準來決定電氣產品的鋒利邊程度(UL1439),這標準名為利邊測試器。提供一個客觀的標準,來決定符合現有的要求。
大部份UL標準包括在消費產品上的主要要求例如邊緣、突出部份、角位、包圍物品、開口、圍邊、手把等等,這些部份都需要圓滑以不導致傷害。



·

設計

方便易用和長壽

鋒利的邊緣測試器型號SET-50 由適合手型設計的貝殼狀機殼組成 (用Cycoloy 塑料製做, IBM 電腦機殼也選用同樣材料製造)。特點包括一條細小的手臂、被密封的滾珠軸承減少摩擦,並且加入新彈弓來符合*新的UL公司力度要求,所有可移動的部份均有保護來防止污垢及損壞。

利邊測試器型號SET-50 配合膠帽TC-3使用。這成套工具包括42個膠帽,膠帽上附有三捲備用裝配的磁帶,方便在測試的工具上滑行。

這個磁帶蓋帽符合U.L.三捲磁帶的要求:
一層3M 泡沬材料為1/16”厚
一層3M 泡沬材料為1/32”厚
表面一層為聚四氟乙烯磁帶

磁帶膠帽*有效率的用途是容易和迅速地對多個製造業進行測試,並且不用在測試前在工具上安裝三層不同的磁帶。每次測試須用磁帶膠帽,在幾秒鐘內它即可被除去、被辨認和被替換,因而可在很短時間內進行更多的測試。
磁帶膠帽附的中心有1/16”的顯示,幫助審查員確認測試中心點。



操作

產品測試從未是這容易

1. 磁帶蓋帽一直在利邊測試器的壓力頭以黑色為中心線和紅色塑料蓋帽面的部份滑行。

2. 測試時,磁帶擺放在被檢查物件的邊緣上。用手拿著機殼,按下磁帶頭蓋, 直到測試臂及機殼形成直線。

3. 沿邊緣2英寸移動壓力頭再返回起點。然後由邊緣撤出工具。邊緣與帽蓋頭之間的距離為4英寸。

4. 檢查磁帶蓋帽確定是否穿透兩層感應器。如果穿透,黑色的磁帶將會被削減。利邊測試器可接受的鋒利程度是不可穿透感應器的外面兩層。



關於TES公司



成立於1990年,是利邊測試器及膠帽套的原生產商

一部份***生產商已經使用华盛公司的利邊測試器

Amana Appliances
Canon Corporation
Coleman Products
Eaton Corporation
Electrolux
Fujitsu
General Electric
Hamilton Beach/Procter Silex
Hewlett-Packard
Hot Point
IBM
La-Z-Boy
Litton Corporation
Mattel Maytag
NEC America
Nikon
RCA
Rheem
Seksun Corporation
Siemens Corporation
Snapper
Sunbeam
Underwriters Laboratories
Westbend Corporation
Westinghouse
Whirlpool
Xerox





English Version





1_1563176674_3059

The Sharp Edge Tester is the leader in product safety equipment, currently in use worldwide by manufacturers of toys, home appliances, business equipment, automobile manufacturers, home appliances, every item used in the kitchen, and much more.

With so much concern over the safety of products to be used in the home, Underwriter’s Laboratories has issued standards to test edge sharpness on a variety of consumer products.

Technical Engineering Service (TES) is the original and only manufacturer of the Sharp Edge Tester Model SET-50.

If you are concerned about the safety and sharpness of your product and want to meet international standards as set by UL and the Consumer Product Safety Commission, then you need to order the Sharp Edge Tester and Tape Cap Kit for use on your production line.

The Sharp Edge Tester Model SET-50 is extremely easy to use and durable. It consists of a clam-shell type housing which fits into the palm of a hand. Features include a compact arm, sealed ball bearings to reduce friction, and a new spring to meet the latest Underwriter’s Laboratories force requirements. All moving mechanisms are protected against dirt and breakage. The Sharp Edge Tester is used with the available Tape Cap Kit which simulates the thickness of skin on the human finger.


Specifications:

This product was designed specifically for Underwiter’s Laboratories

Underwriters Laboratories has released a “Standard for Determination of Sharpness of Edges of Electrical Equipment,” U.L. 1439. This standard calls for the use of the Sharp Edge Tester in order to provide an objective and uniform test method for determining compliance with an existing safety requirement.

Most U.L. standards covering consumer products contain a subjective requirement such as “an edge, projection, or corner of an enclosure, opening, frame, guard, knob, handle, or the like, shall be smooth, well rounded, and not sufficiently sharp to constitute a hazard.”
based on recent publications, it is evident that the sharpness of edges on consumer products is important to many government agencies like the Consumer Product Safety Commission and the National Bureau of Standards. Comment from the industry — where thousands of Sharp Edge Testers are in use — favor the general design concepts of this U.L. chosen Sharp Edge Tester over all others.

This model appeared in Production Magazine and in a technical paper of the “UL Sharp Edge Tester” #MR-77-469, published by the Society of Manufacturing Engineers.

Note: If you have a new product to submit to ‘UL’ for approval. You must use this tool to test it’s EDGES. They will not approve your product without doing so.


Design:

Designed for Ease of Use and Longevity

The Sharp Edge Tester Model SET-50 consists of a clam-shell type housing (made of Cycoloy plastic, the same material used to manufacture the housing of IBM computers) which fits into the palm of the hand. Features include a compact arm, sealed ball bearings to reduce friction, and a new spring to meet the latest Underwriter’s Laboratories force requirements. All moving mechanisms are protected against dirt and breakage.

The Sharp Edge Tester Model SET-50 is used with the Tape Kit Model TC-3. This kit consists of 42 pieces each with three pre-assembled tapes on a plastic cap, which slips on to the tool for testing.
This Tape Cap meets the U.L. requirements of three tapes:
1 layer of 3M Scotch Foam, 1/16” thick,

1 layer of 3M Scotch Foam, 1/32” thick,

1 laver of skived Teflon Tape

Use of the Tape Cap is the most efficient way for the inspector to easily and rapidly conduct multiple tests on the manufacturing line without having to install three different layers of tape on the tool prior to testing. Each time a test is performed with the Tape Cap, it can be removed, identified, and replaced within seconds; thus providing more tests in less time to facilitate inspection reports.

The Tape Cap also features a 1/16” wide guide line which is on the center of the cap and helps the inspector performing the test to “center” the tape and the tool on the edge being tested.


How to use:

Product Safety Testing Has Never Been This Easy

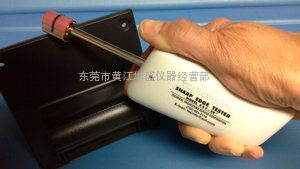

1. Slide the Tape Cap all the way on to the pressure head of the Sharp Edge Tester with the black center guide line and the uncovered portion of the red plastic cap facing up.

2. Position the tape covered pressure head on the edge of the item to be checked for sharpness. Holding the clam shell base in your hand, press down on the tape covered head until the arm and the tool form a straight line.

3. Move the pressure head two inches along the edge and then back again to the starting point. Then withdraw the tool from the edge. The total distance of engagement between the edge and the tape-covered head is therefore 4 inches.

4. Examine the tape cap to determine whether or not penetration has occurred through the two-sensing layers. If penetration has occurred, the black indicating tape will be visible through the resulting cut. The application of the Sharp Edge Tester to an edge with acceptable sharpness will not result in the cutting through the two outer layers of the sensing tape.


about TES:

Technical Engineering Service is the original manufacturer of the Sharp Edge Tester and Tape Cap Kit. We have been manufacturing this product since 1973.

Some of Companies which have used the Sharp Edge Tester:

Amana Appliances
Canon Corporation
Coleman Products
Eaton Corporation
Electrolux
Fujitsu
General Electric
Hamilton Beach/Procter Silex
Hewlett-Packard
Hot Point
IBM
La-Z-Boy
Litton Corporation
Mattel Maytag
NEC America
Nikon
RCA
Rheem
Seksun Corporation
Siemens Corporation
Snapper
Sunbeam
Underwriters Laboratories
Westbend Corporation
Westinghouse
Whirlpool
Xerox


Ordering Information

2_1528363837_5811

2_1543231309_2063

SET-50 sharp edge tester plus TC-3 Tap Cap (includes 44 piece)

HK$4,650 per set

Buy It Now


2_1530629930_8154

TC-3 Tape Cap (includes 44 piece)

HK$1,800 per box

Buy It Now

Made in the USA









   买家在收到货时,请与货运公司人员当面验货再签收!请仔细检查配件是否齐全,外观有无损坏,特别是外观有无破损,如有损坏或是配件丢失,请您拒收,并立即联系东莞华盛公司协商处理!若您不验货检查就签收(例如签收后才发现外观损坏或配件丢失.恕本公司概不负责)造成的损失由买家自行承担(买家签收后本公司将视为产品完好到货)因本公司一直坚持薄利多销原则.还请大家多多配合.谢谢大家的理解和支持!





   华盛仪器有限公司是集研发、生产销售于一体的实验仪器*制造商。我公司*致力于研发、生产高品质的现代化实验设备,已通过了ISO9001/2000国际质量体系认证,公司拥有先进的生产及检测设备,并具有完善的计量及质量保证体系。
    公司主要产品有:玩具检测仪器类系列、环境试验箱类系列、电子测量仪器类系列、空气压缩机类系列、冷冻式干燥机类系列等基础实验室设备,并广泛应用于生物制药、卫生防疫、环境保护、农业科研等领域。我们本着以客户服务为导向,为客户提供实验室仪器及电子行业生产设备的整体解决方案和*化服务。我们的经营理念是“客户,以质量为本”,为目标市场提供***的服务,使客户得到*大的增值,与客户建立长久、互赢、双赢的合作伙伴关系。
    华盛将一如既往,以实事求是、踏实苦干为根本;以国际先进水平为目标,不断攀登技术高峰;以市场为导向,不断把高质量的产品奉献给广大客户。









我公司已在全国各省市有自己的办事处及售后服务点!您购买我公司产品,我公司给您品质保障
